Long life battery manufacturing automation equipment
Conveyors and manufacturing automation solutions for all types of batteries
Configure your solutionDifferent systems for Batteries Industries
Either choose to configure your system from the start above, or, if you already know which system you want, you can browse among the options below.
X65
Aluminum
65 mm
X65
Aluminum
65 mm
X65 Plastic Chain Conveyors
FlexLink's X65 conveyor system is designed for low friction, low power consumption and a long service life.
General technical features
- Chain width [mm]:
- 63
- Food approval:
- FDA
- Drive unit capacity [N]:
- 200–1000
- Chain tension limit [N]:
- 1000
- Max conveyor length [m]:
- 40
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 15–140
X85
Aluminum
85 mm
X85
Aluminum
85 mm
X85 Plastic Chain Conveyors
FlexLink's X85 is a conveyor with a 85mm wide track, allowing a flexible chain to transport products, horizontal and vertical.
General technical features
- Chain width [mm]:
- 83
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 300–1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 20–200
X65P
Pallet
65 mm
X65P
Pallet
65 mm

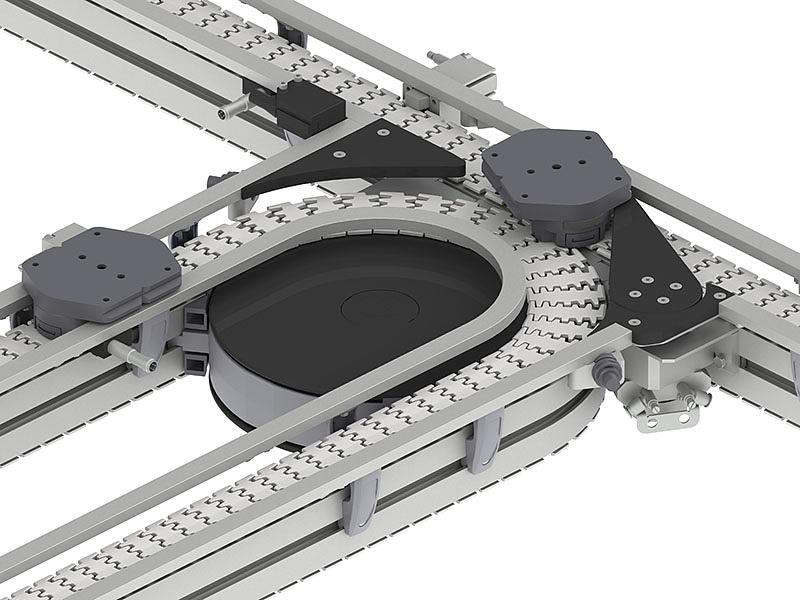

X65P Single Track Pallet Conveyors
Single track pallet system with standardized modules and RFID for efficient single-piece flow.
General technical features
- Chain width [mm]:
- 63
- Drive unit capacity [N]:
- 200–1000
- Chain tension limit [N]:
- 1000
- Max conveyor length [m]:
- 40
- Max weight on conveyor [kg]:
- 200
- Carrier width [mm]:
- 100
- Carrier length [mm]:
- 128
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 30
Product range
- Recommended item width [mm]:
- 10–100
- Max carrier weight [kg]:
- 3.0
X85P
Pallet
85 mm
X85P
Pallet
85 mm

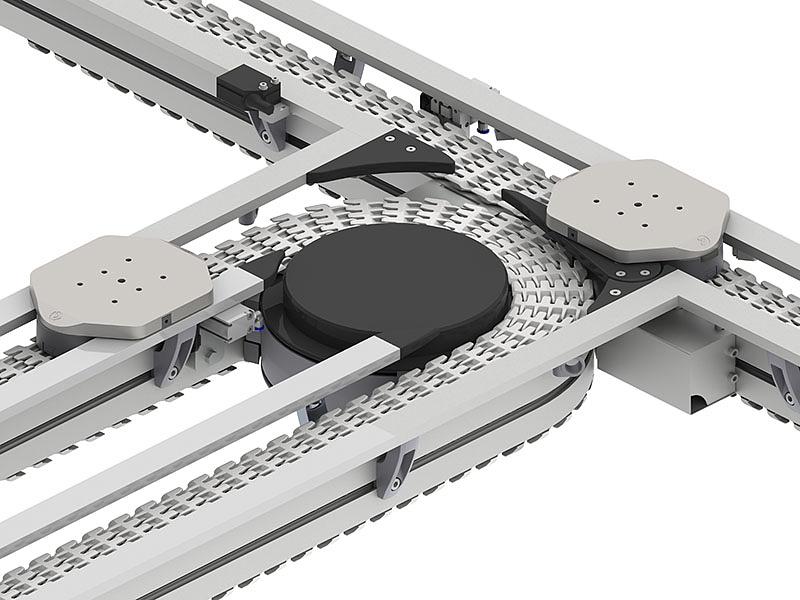

X85P Single Track Pallet Conveyors
This pallet system is widely used in production cells with conveyor highways and satellites for production processes.
General technical features
- Chain width [mm]:
- 83
- Drive unit capacity [N]:
- 300–1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
- Carrier width [mm]:
- 160
- Carrier length [mm]:
- 136, 161, 211, 261
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 30
Product range
- Recommended item width [mm]:
- 10–160
- Max carrier weight [kg]:
- 10.0
XKP
Pallet
105 mm
XKP
Pallet
105 mm
XK Single Track Pallet Conveyors
Single track pallet conveyor for larger items with the possibility of pallet adaptation to product types.
General technical features
- Chain width [mm]:
- 102
- Drive unit capacity [N]:
- 2500
- Chain tension limit [N]:
- 2500
- Max conveyor length [m]:
- 40
- Max weight on conveyor [kg]:
- 800
- Carrier width [mm]:
- 200, 250, 300
- Carrier length [mm]:
- 150, 225, 300
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 30
Product range
- Recommended item width [mm]:
- 10–300
- Max carrier weight [kg]:
- 30.0
XTC
Twin track
240-640 mm
XTC
Twin track
240-640 mm
XTC Twin Track Pallet Conveyors
Twin track pallet conveyor for manual and automatic assembly and test systems in automotive and electical industries.
General technical features
- Chain width [mm]:
- 35
- Drive unit capacity [N]:
- 400
- Chain tension limit [N]:
- 200
- Max conveyor length [m]:
- 4
- Max weight on conveyor [kg]:
- 100
- Carrier width [mm]:
- 240, 320, 400, 480, 640
- Carrier length [mm]:
- 240, 320, 400, 480, 640
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 20
Product range
- Recommended item width [mm]:
- 10–640
- Max carrier weight [kg]:
- 30.0
XT
Twin track
240-640 mm
XT
Twin track
240-640 mm
XT Twin Track Pallet Conveyors
Twin track pallet conveyor for manual and automatic assembly and test systems in automotive and electical industries.
General technical features
- Chain width [mm]:
- 35
- Drive unit capacity [N]:
- 1800
- Chain tension limit [N]:
- 900
- Max conveyor length [m]:
- 25
- Max weight on conveyor [kg]:
- 250
- Carrier width [mm]:
- 240, 320, 400, 480, 640
- Carrier length [mm]:
- 240, 320, 400, 480, 640
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 20
Product range
- Recommended item width [mm]:
- 10–640
- Max carrier weight [kg]:
- 30.0
HU
Twin track
480-1040 mm
HU
Twin track
480-1040 mm

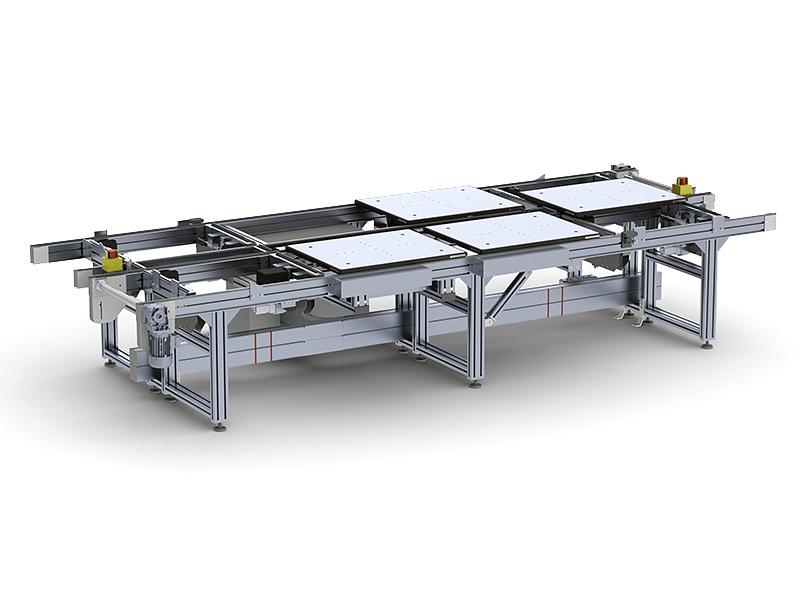

HU Twin Track Pallet Conveyors
Smart twin track pallet conveyor for heavy loads with standard modules including pre-defined control logic.
General technical features
- Max conveyor length [m]:
- 20
- Max weight on conveyor [kg]:
- 1000
- Carrier width [mm]:
- 480, 640, 800, 1040
- Carrier length [mm]:
- 480, 640, 800, 1040
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 15
Product range
- Recommended item width [mm]:
- 10–1040
- Max carrier weight [kg]:
- 200.0
RC12
Palletizer
Collaborative
RC12
Palletizer
Collaborative
RC12 Collaborative Palletizer
New collaborative standardized palletizer with unmatched safety and customizable application layer.
General technical features
- Robot Arm:
- Omron TM12-S
- Power supply:
- 110/230 VAC, Single phase
- Air:
- Integrated vacuum generation
- Footprint [m²]:
- 13.0
Production environment
- Operating temperature [°C]:
- 10–40
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 8, Double pick: 14
- Max pallet height [mm]:
- 2040
Product range
- Max box weight [kg]:
- 10
- Box size [mm]:
- from 150x150x150 to 600x400x500
RI20
Palletizer
Industrial
RI20
Palletizer
Industrial
RI20 Industrial Palletizer
Modern, safe and easy to use palletizing solution. Designed to work continuously with consistent quality and precision.
General technical features
- Robot Arm:
- Kuka KR20, M-20iD/35
- Power supply:
- 3x400 VAC 50Hz 50A
- Air:
- Compressed air
- Footprint [m²]:
- 18.0
Production environment
- Operating temperature [°C]:
- 5–40
- Environment:
- Dry
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 12, Double pick: 20
- Max pallet height [mm]:
- 2200
Product range
- Max box weight [kg]:
- 29
- Box size [mm]:
- from 140x200x110 to 480x600x480
XC
Structural system
44 mm base
XC
Structural system
44 mm base
XC - Enclosure and guards
Enclosures, machine frames and protections. 44mm base.
TC
Structural system
40 mm base
TC
Structural system
40 mm base
TC - Enclosure and guards
Enclosures, machine frames and protections. 40mm base.
3 of our most popular systems for Batteries Industry
X65P Single Track Pallet Conveyors
Single track pallet system with standardized modules and RFID for efficient single-piece flow.
Technology: Puck and Pallet Conveyor Systems
Read moreX85P Single Track Pallet Conveyors
This pallet system is widely used in production cells with conveyor highways and satellites for production processes.
Technology: Puck and Pallet Conveyor Systems
Read moreHU Twin Track Pallet Conveyors
Smart twin track pallet conveyor for heavy loads with standard modules including pre-defined control logic.
Technology: Puck and Pallet Conveyor Systems
