Pharmaceutical conveyors for healthy pharma production
Flow solutions and pharma automation equipment designed for highest industry standards
Configure your solutionDifferent systems for Pharma Industries
Either choose to configure your system from the start above, or, if you already know which system you want, you can browse among the options below.
XS
Aluminum
45 mm
XS
Aluminum
45 mm
XS Plastic Chain Conveyors
FlexLink's XS conveyor system is very compact and neat designed. Its chain permits transport of very small items. The conveyor is 45mm wide.
General technical features
- Chain width [mm]:
- 44
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 500
- Chain tension limit [N]:
- 500
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 150
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 10–80
X65
Aluminum
65 mm
X65
Aluminum
65 mm
X65 Plastic Chain Conveyors
FlexLink's X65 conveyor system is designed for low friction, low power consumption and a long service life.
General technical features
- Chain width [mm]:
- 63
- Food approval:
- FDA
- Drive unit capacity [N]:
- 200–1000
- Chain tension limit [N]:
- 1000
- Max conveyor length [m]:
- 40
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 15–140
X85
Aluminum
85 mm
X85
Aluminum
85 mm
X85 Plastic Chain Conveyors
FlexLink's X85 is a conveyor with a 85mm wide track, allowing a flexible chain to transport products, horizontal and vertical.
General technical features
- Chain width [mm]:
- 83
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 300–1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 20–200
XH
Aluminum
105 mm
XH
Aluminum
105 mm
XH Plastic Chain Conveyors
FlexLink XH conveyor system is suitable for larger items, with a conveyor track of 105mm.
General technical features
- Chain width [mm]:
- 103
- Food approval:
- FDA
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 300
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 25–300
X45P
Pallet
45 mm
X45P
Pallet
45 mm
X45 Puck Handling Conveyors
FlexLink's X45 puck handling system is designed for high capacities and transports small round-shaped pucks or carries.
General technical features
- Chain width [mm]:
- 43
- Drive unit capacity [N]:
- 900
- Chain tension limit [N]:
- 900
- Max conveyor length [m]:
- 25
- Max weight on conveyor [kg]:
- 125
- Carrier width [mm]:
- 35
- Carrier length [mm]:
- 35
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 20
Product range
- Recommended item width [mm]:
- 10–35
- Max carrier weight [kg]:
- 0.25
X180
Aluminum
180 mm
X180
Aluminum
180 mm
X180 Plastic Chain Conveyors
FlexLink's X180 is a conveyor with a wide track, allowing a flexible chain to transport products, horizontal and vertical. The conveyor is 180mm wide.
General technical features
- Chain width [mm]:
- 175
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 70–400
X300
Aluminum
300 mm
X300
Aluminum
300 mm
X300 Plastic Chain Conveyors
FlexLink's X300 is a conveyor with a wide track, allowing a flexible chain to transport products, horizontal and vertical. The conveyor is 300mm wide.
General technical features
- Chain width [mm]:
- 295
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 70–500
X70X
Stainless steel
70 mm
X70X
Stainless steel
70 mm
X70X Plastic Chain Conveyors
FlexLink's X70X conveyor system is designed to provide structure rigidness, robustness, and easier cleaning.
General technical features
- Chain width [mm]:
- 68
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 800
- Chain tension limit [N]:
- 800
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry, Wet
- Cleaning method:
- Dry, Wet
Performance
- Max speed [m/min]:
- 90
Product range
- Recommended item width [mm]:
- 15–140
X85X
Stainless steel
85 mm
X85X
Stainless steel
85 mm
X85X Plastic Chain Conveyors
FlexLink's X85X is designed for an enhanced cleanliness and features like better drainage and smaller contact surfaces.
General technical features
- Chain width [mm]:
- 83
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry, Wet
- Cleaning method:
- Dry, Wet
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 15–200
X180X
Stainless steel
180 mm
X180X
Stainless steel
180 mm

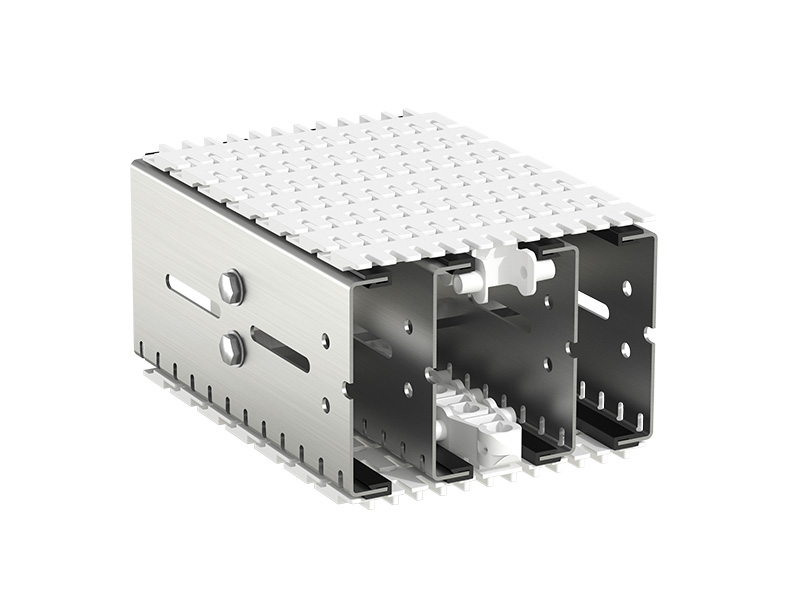

X180X Plastic Chain Conveyors
FlexLink's X180X provides robustness and cleanliness for food and packaging applications.
General technical features
- Chain width [mm]:
- 175
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry, Wet
- Cleaning method:
- Dry, Wet
Performance
- Max speed [m/min]:
- 80
Product range
- Recommended item width [mm]:
- 70–400
X300X
Stainless steel
300 mm
X300X
Stainless steel
300 mm
X300X Plastic Chain Conveyors
FlexLink's X300X in stainless steel is a robust and easy-to-clean plastic chain conveyor a high variety of components.
General technical features
- Chain width [mm]:
- 295
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry, Wet
- Cleaning method:
- Dry, Wet
Performance
- Max speed [m/min]:
- 80
Product range
- Recommended item width [mm]:
- 70–400
WLX
Stainless steel
222-526 mm
WLX
Stainless steel
222-526 mm

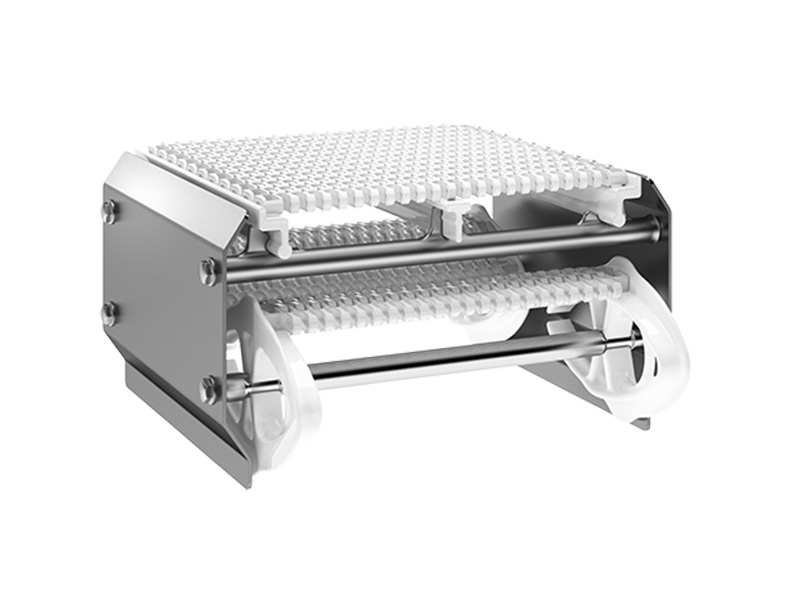

WLX Modular Belt Conveyors
The WLX modular conveyor is suitable for all industries, where the requirements for hygiene and accessibility are high.
General technical features
- Chain width [mm]:
- 152, 203, 304, 456, 608
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1200
- Chain tension limit [N]:
- 1200
- Max conveyor length [m]:
- 20
- Max weight on conveyor [kg]:
- 300
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry, Wet
- Cleaning method:
- Dry, Wet
Performance
- Max speed [m/min]:
- 40
Product range
- Recommended item width [mm]:
- 20–600
CSE
Compact
Spiral Elevator
CSE
Compact
Spiral Elevator
X85 Compact Spiral Conveyor
FlexLink's compact spiral conveyors offer a high throughput solution for up or down elevations with the lowest spiral conveyor footprint on the market.
General technical features
- Chain width [mm]:
- 85
- Material:
- Aluminium
- Diameter C-C [mm]:
- 500
- Max height [mm]:
- 2900
- Incline [°]:
- 11
- Direction:
- Up, Down
- Infeed level:
- 900
- Chain type:
- Friction, Flat friction, Cleated, Plain
- Drive unit/spiral:
- 2
Production environment
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 10–50
Product range
- Max load [kg/m]:
- 2
- Max product height [mm]:
- 175
- Max product size (LxW) [mm]:
- 200x175
SE
Spiral Elevator
SE
Spiral Elevator
Ambaflex Spiral Conveyor
FlexLink's classical spiral conveyors offer a high throughput solution for up or down elevations.
General technical features
- Chain width [mm]:
- 100
- Material:
- Steel
- Diameter C-C [mm]:
- 1000
- Max height [mm]:
- 5000
- Incline [°]:
- 9
- Direction:
- Up, Down
- Infeed level:
- 600, 700, 800, 900, 1000
- Chain type:
- Flat friction
- Drive unit/spiral:
- 1
Production environment
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 5–60
Product range
- Max load [kg/m]:
- 10
- Max product height [mm]:
- 300
RC12
Palletizer
Collaborative
RC12
Palletizer
Collaborative
RC12 Collaborative Palletizer
New collaborative standardized palletizer with unmatched safety and customizable application layer.
General technical features
- Robot Arm:
- Omron TM12-S
- Power supply:
- 110/230 VAC, Single phase
- Air:
- Integrated vacuum generation
- Footprint [m²]:
- 13.0
Production environment
- Operating temperature [°C]:
- 10–40
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 8, Double pick: 14
- Max pallet height [mm]:
- 2040
Product range
- Max box weight [kg]:
- 10
- Box size [mm]:
- from 150x150x150 to 600x400x500
RI20
Palletizer
Industrial
RI20
Palletizer
Industrial

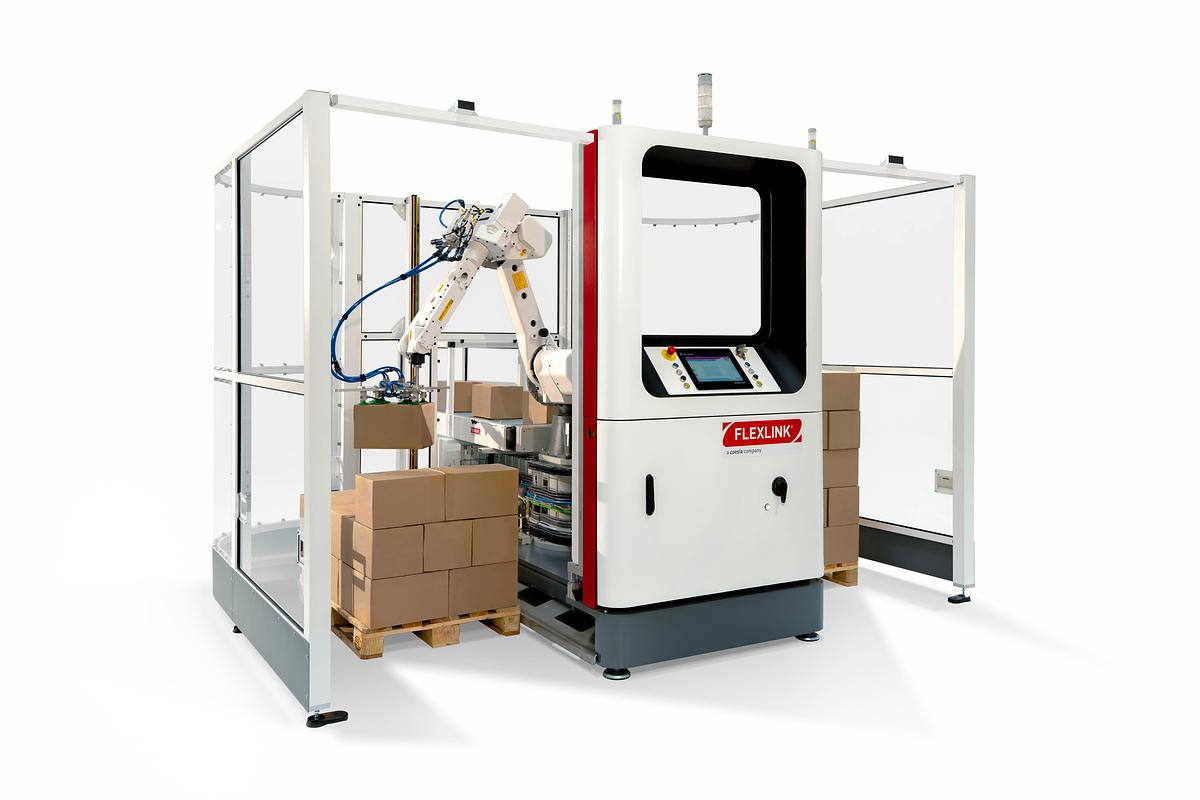

RI20 Industrial Palletizer
Modern, safe and easy to use palletizing solution. Designed to work continuously with consistent quality and precision.
General technical features
- Robot Arm:
- Kuka KR20, M-20iD/35
- Power supply:
- 3x400 VAC 50Hz 50A
- Air:
- Compressed air
- Footprint [m²]:
- 18.0
Production environment
- Operating temperature [°C]:
- 5–40
- Environment:
- Dry
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 12, Double pick: 20
- Max pallet height [mm]:
- 2200
Product range
- Max box weight [kg]:
- 29
- Box size [mm]:
- from 140x200x110 to 480x600x480
XC
Structural system
44 mm base
XC
Structural system
44 mm base
XC - Enclosure and guards
Enclosures, machine frames and protections. 44mm base.
TC
Structural system
40 mm base
TC
Structural system
40 mm base
TC - Enclosure and guards
Enclosures, machine frames and protections. 40mm base.
Pharma challenges? Not anymore.
FlexLink’s advanced solutions for the pharmaceutical industry ensure gentle product handling, full traceability, and operational efficiency. Discover how our precision conveyors and robotic automation help manufacturers meet strict safety and quality standards.
3 of our most popular systems for Pharma Industry
WLX Modular Belt Conveyors
The WLX modular conveyor is suitable for all industries, where the requirements for hygiene and accessibility are high.
Technology: Stainless Steel Conveyor Systems
Read moreRI20 Industrial Palletizer
Modern, safe and easy to use palletizing solution. Designed to work continuously with consistent quality and precision.
Technology: Palletizing
Read moreX180X Plastic Chain Conveyors
FlexLink's X180X provides robustness and cleanliness for food and packaging applications.
Technology: Stainless Steel Conveyor Systems
Read moreLatest updates from FlexLink
Introducing the GENIUS 1-LV PCB Laser Marking System
FlexLink introduces the GENIUS 1-LV laser marking system, a compact, high-precision solution for automated PCB identification. For the first time available to the European market, the GENIUS 1-LV combines permanent laser marking with seamless integration into modern SMT and PCB assembly lines. Equipped with a new stopper design, dual-camera vision system, and touchscreen interface, it brings faster handling, higher accuracy, and easier operation to every production line.
Laser marking in PCB assembly (PCBA): precision, performance, and the path to smart automation
In any electronics production environment, small choices often have big impacts. One such choice, how to label a printed circuit board, might seem minor at first. But ask anyone working in PCB assembly and they'll tell you: the method you use to track and identify printed circuit boards can influence everything from product quality to line speed to compliance.
FlexLink standard components: integrated workflow for modular conveyor automation
Modular automation relies on clarity and repeatability. Yet too often, the supporting processes of ordering automated conveyor system (design, procurement, logistics) are managed separately, using tools that don't communicate with one another. The result is fragmented workflows, duplicated effort, and lack of visibility across teams.
Smart automation for sensitive pharma: no pressure, no damage
When it comes to pharmaceutical production, the margin for error is zero. A moment of turbulence, a little too much pressure, or an unexpected jolt: a delicate vial might crack, a syringe could tip, or a sensitive biologic like albumin might foam and lose its potency. In a space where precision is everything, the way products are moved matters just as much as how they're made.
FlexLink's automation transforms pharmaceutical distribution centers
The scene repeats itself daily across pharmaceutical distribution centers worldwide: demand needs surge regularly, challenging staffing levels and automation flexibility.
