The X45 puck handling conveyors is well suited for handling small, fragile products. The individual product is placed on a standard puck (carrier) through the production line. The pucks are used with a high capacity conveyor system including RFID solution for high level routing and full product control The X45e modules allow considerably simplified controls design and easy modification of performance. Integrated RFID functionality makes it easy to control the process and product QA. Based on high-efficiency motor technology, the system energy consumption is substantially lower than for conventional solutions. The conveyor can be configured with a suitable chain according to the production requirements, e.g. temperature and strength.

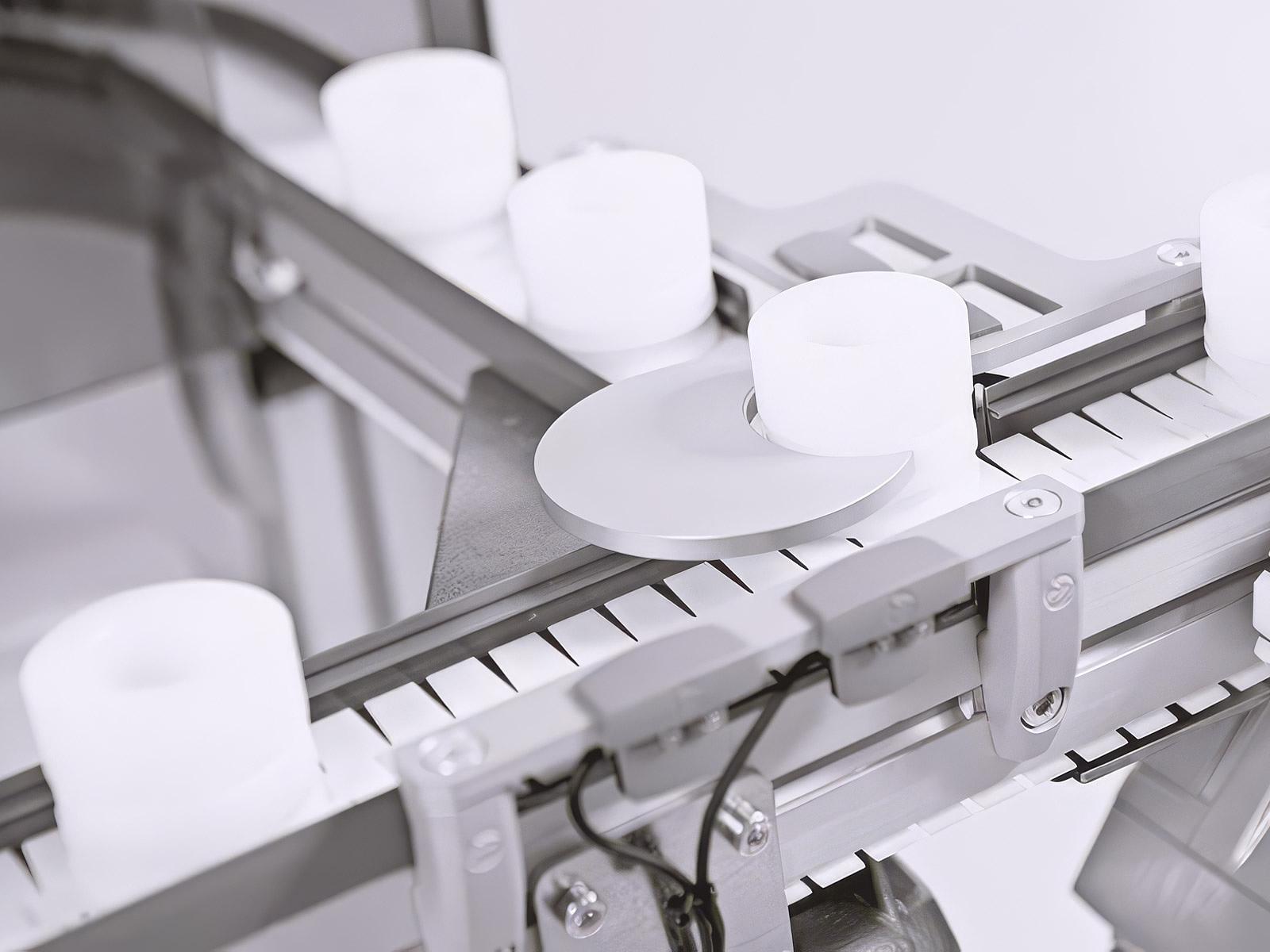

X45 Puck Handling Conveyors
FlexLink's X45 puck handling system is designed for high capacities and transports small round-shaped pucks or carries.
- Technology:
- Puck and Pallet Conveyor Systems
- Industries:
- Food, Consumer goods, Pharma
Visit FlexLink components store to order equipment directly
Need a technical expert? Find your FlexLink office
Description
General technical features
- Chain width [mm]:
- 43
- Drive unit capacity [N]:
- 900
- Chain tension limit [N]:
- 900
- Max conveyor length [m]:
- 25
- Max weight on conveyor [kg]:
- 125
- Carrier width [mm]:
- 35
- Carrier length [mm]:
- 35
Production environment
- Operating temperature [°C]:
- -20 to 60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 20
Product range
- Max carrier weight [kg]:
- 0.25
- Recommended item width [mm]:
- 10-35
