Consumer goods conveyors for efficient order fulfillment
FlexLink provides smart solutions for consumer goods order fulfillment
Configure your solutionDifferent systems for Consumer goods Industries
Either choose to configure your system from the start above, or, if you already know which system you want, you can browse among the options below.
X45C
Aluminum
45 mm
X45C
Aluminum
45 mm
X45C Plastic Chain Conveyors
FlexLink's X45C conveyor system is very compact and robust for handling small and light products.
General technical features
- Chain width [mm]:
- 43
- Drive unit capacity [N]:
- 200
- Chain tension limit [N]:
- 200
- Max conveyor length [m]:
- 6
- Max weight on conveyor [kg]:
- 30
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 20
Product range
- Recommended item width [mm]:
- 10–100
X45H
Aluminum
45 mm
X45H
Aluminum
45 mm
X45H Plastic Chain Conveyors
The plastic chain conveyor system X45H with aluminum beam permits horizontal distribution.
General technical features
- Chain width [mm]:
- 43
- Drive unit capacity [N]:
- 900
- Chain tension limit [N]:
- 900
- Max conveyor length [m]:
- 25
- Max weight on conveyor [kg]:
- 125
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 10–100
XS
Aluminum
45 mm
XS
Aluminum
45 mm
XS Plastic Chain Conveyors
FlexLink's XS conveyor system is very compact and neat designed. Its chain permits transport of very small items. The conveyor is 45mm wide.
General technical features
- Chain width [mm]:
- 44
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 500
- Chain tension limit [N]:
- 500
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 150
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 10–80
X65
Aluminum
65 mm
X65
Aluminum
65 mm

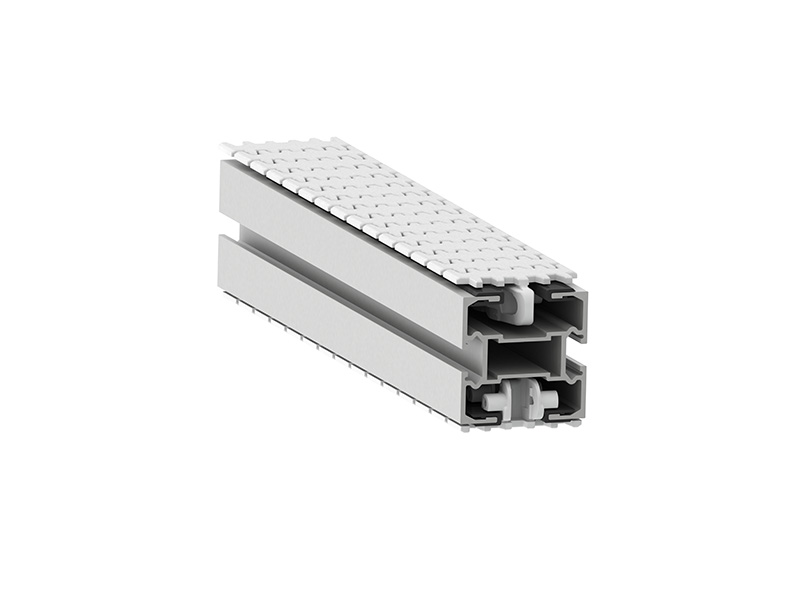

X65 Plastic Chain Conveyors
FlexLink's X65 conveyor system is designed for low friction, low power consumption and a long service life.
General technical features
- Chain width [mm]:
- 63
- Food approval:
- FDA
- Drive unit capacity [N]:
- 200–1000
- Chain tension limit [N]:
- 1000
- Max conveyor length [m]:
- 40
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 15–140
X85
Aluminum
85 mm
X85
Aluminum
85 mm

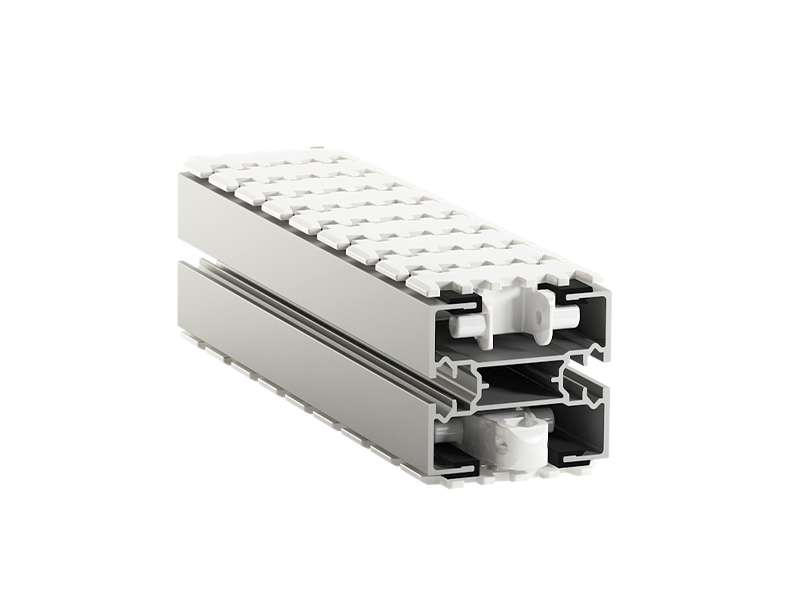

X85 Plastic Chain Conveyors
FlexLink's X85 is a conveyor with a 85mm wide track, allowing a flexible chain to transport products, horizontal and vertical.
General technical features
- Chain width [mm]:
- 83
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 300–1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 120
Product range
- Recommended item width [mm]:
- 20–200
XK
Aluminum
105 mm
XK
Aluminum
105 mm
XK Plastic Chain Conveyors
The plastic chain conveyor system XK with aluminum beam permits horizontal as well as vertical distribution.
General technical features
- Chain width [mm]:
- 102
- Food approval:
- FDA
- Drive unit capacity [N]:
- 2500
- Chain tension limit [N]:
- 2500
- Max conveyor length [m]:
- 40
- Max weight on conveyor [kg]:
- 800
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 25–300
XH
Aluminum
105 mm
XH
Aluminum
105 mm
XH Plastic Chain Conveyors
FlexLink XH conveyor system is suitable for larger items, with a conveyor track of 105mm.
General technical features
- Chain width [mm]:
- 103
- Food approval:
- FDA
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 300
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 25–300
X180
Aluminum
180 mm
X180
Aluminum
180 mm
X180 Plastic Chain Conveyors
FlexLink's X180 is a conveyor with a wide track, allowing a flexible chain to transport products, horizontal and vertical. The conveyor is 180mm wide.
General technical features
- Chain width [mm]:
- 175
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 70–400
X300
Aluminum
300 mm
X300
Aluminum
300 mm
X300 Plastic Chain Conveyors
FlexLink's X300 is a conveyor with a wide track, allowing a flexible chain to transport products, horizontal and vertical. The conveyor is 300mm wide.
General technical features
- Chain width [mm]:
- 295
- Food approval:
- FDA, EU
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 70–500
WL
Aluminum
304-608 mm
WL
Aluminum
304-608 mm

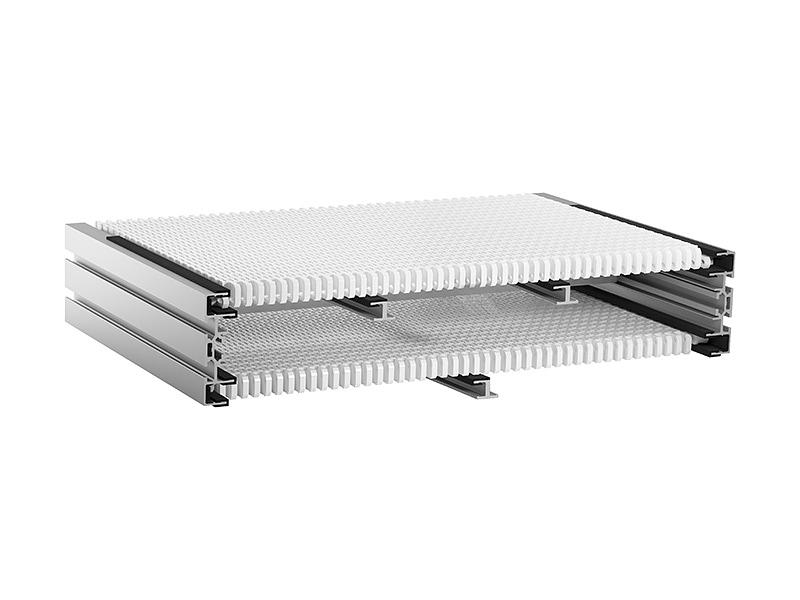

WL Modular Belt Conveyor
FlexLink WL conveyor system is designed for transport and accumulation of lightweight goods in different configurations.
General technical features
- Chain width [mm]:
- 260, 362, 564
- Food approval:
- FDA
- Drive unit capacity [N]:
- 1200
- Chain tension limit [N]:
- 1200
- Max conveyor length [m]:
- 15
- Max weight on conveyor [kg]:
- 250
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 40
Product range
- Recommended item width [mm]:
- 20–626
WK
Aluminum
150-1200 mm
WK
Aluminum
150-1200 mm
WK Modular Belt Conveyor
The wide belt conveyor system WK permits effective transport and accumulation with a belt width up to 1200 mm.
General technical features
- Chain width [mm]:
- 150, 225, 300, 600, 900, 1200
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 20
- Max weight on conveyor [kg]:
- 250
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 40
Product range
- Recommended item width [mm]:
- 10–1200
X45P
Pallet
45 mm
X45P
Pallet
45 mm
X45 Puck Handling Conveyors
FlexLink's X45 puck handling system is designed for high capacities and transports small round-shaped pucks or carries.
General technical features
- Chain width [mm]:
- 43
- Drive unit capacity [N]:
- 900
- Chain tension limit [N]:
- 900
- Max conveyor length [m]:
- 25
- Max weight on conveyor [kg]:
- 125
- Carrier width [mm]:
- 35
- Carrier length [mm]:
- 35
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 20
Product range
- Recommended item width [mm]:
- 10–35
- Max carrier weight [kg]:
- 0.25
CSE
Compact
Spiral Elevator
CSE
Compact
Spiral Elevator
X85 Compact Spiral Conveyor
FlexLink's compact spiral conveyors offer a high throughput solution for up or down elevations with the lowest spiral conveyor footprint on the market.
General technical features
- Chain width [mm]:
- 85
- Material:
- Aluminium
- Diameter C-C [mm]:
- 500
- Max height [mm]:
- 2900
- Incline [°]:
- 11
- Direction:
- Up, Down
- Infeed level:
- 900
- Chain type:
- Friction, Flat friction, Cleated, Plain
- Drive unit/spiral:
- 2
Production environment
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 10–50
Product range
- Max load [kg/m]:
- 2
- Max product height [mm]:
- 175
- Max product size (LxW) [mm]:
- 200x175
SE
Spiral Elevator
SE
Spiral Elevator
Ambaflex Spiral Conveyor
FlexLink's classical spiral conveyors offer a high throughput solution for up or down elevations.
General technical features
- Chain width [mm]:
- 100
- Material:
- Steel
- Diameter C-C [mm]:
- 1000
- Max height [mm]:
- 5000
- Incline [°]:
- 9
- Direction:
- Up, Down
- Infeed level:
- 600, 700, 800, 900, 1000
- Chain type:
- Flat friction
- Drive unit/spiral:
- 1
Production environment
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 5–60
Product range
- Max load [kg/m]:
- 10
- Max product height [mm]:
- 300
RC12
Palletizer
Collaborative
RC12
Palletizer
Collaborative
RC12 Collaborative Palletizer
New collaborative standardized palletizer with unmatched safety and customizable application layer.
General technical features
- Robot Arm:
- Omron TM12-S
- Power supply:
- 110/230 VAC, Single phase
- Air:
- Integrated vacuum generation
- Footprint [m²]:
- 13.0
Production environment
- Operating temperature [°C]:
- 10–40
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 8, Double pick: 14
- Max pallet height [mm]:
- 2040
Product range
- Max box weight [kg]:
- 10
- Box size [mm]:
- from 150x150x150 to 600x400x500
RI20
Palletizer
Industrial
RI20
Palletizer
Industrial
RI20 Industrial Palletizer
Modern, safe and easy to use palletizing solution. Designed to work continuously with consistent quality and precision.
General technical features
- Robot Arm:
- Kuka KR20, M-20iD/35
- Power supply:
- 3x400 VAC 50Hz 50A
- Air:
- Compressed air
- Footprint [m²]:
- 18.0
Production environment
- Operating temperature [°C]:
- 5–40
- Environment:
- Dry
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 12, Double pick: 20
- Max pallet height [mm]:
- 2200
Product range
- Max box weight [kg]:
- 29
- Box size [mm]:
- from 140x200x110 to 480x600x480
XC
Structural system
44 mm base
XC
Structural system
44 mm base
XC - Enclosure and guards
Enclosures, machine frames and protections. 44mm base.
TC
Structural system
40 mm base
TC
Structural system
40 mm base
TC - Enclosure and guards
Enclosures, machine frames and protections. 40mm base.
FMCG challenges? Not anymore.
FlexLink’s modular solutions for the Food & FMCG industry boost traceability, hygiene, and sustainability, helping manufacturers adapt to new challenges with efficient, reliable, and scalable production lines.
3 of our most popular systems for Consumer goods Industry
X85 Plastic Chain Conveyors
FlexLink's X85 is a conveyor with a 85mm wide track, allowing a flexible chain to transport products, horizontal and vertical.
Technology: Aluminum Conveyor Systems
Read moreWL Modular Belt Conveyor
FlexLink WL conveyor system is designed for transport and accumulation of lightweight goods in different configurations.
Technology: Aluminum Conveyor Systems
Read moreX65 Plastic Chain Conveyors
FlexLink's X65 conveyor system is designed for low friction, low power consumption and a long service life.
Technology: Aluminum Conveyor Systems
Read moreLatest updates from FlexLink
Introducing the GENIUS 1-LV PCB Laser Marking System
FlexLink introduces the GENIUS 1-LV laser marking system, a compact, high-precision solution for automated PCB identification. For the first time available to the European market, the GENIUS 1-LV combines permanent laser marking with seamless integration into modern SMT and PCB assembly lines. Equipped with a new stopper design, dual-camera vision system, and touchscreen interface, it brings faster handling, higher accuracy, and easier operation to every production line.
Laser marking in PCB assembly (PCBA): precision, performance, and the path to smart automation
In any electronics production environment, small choices often have big impacts. One such choice, how to label a printed circuit board, might seem minor at first. But ask anyone working in PCB assembly and they'll tell you: the method you use to track and identify printed circuit boards can influence everything from product quality to line speed to compliance.
FlexLink standard components: integrated workflow for modular conveyor automation
Modular automation relies on clarity and repeatability. Yet too often, the supporting processes of ordering automated conveyor system (design, procurement, logistics) are managed separately, using tools that don't communicate with one another. The result is fragmented workflows, duplicated effort, and lack of visibility across teams.
Smart automation for sensitive pharma: no pressure, no damage
When it comes to pharmaceutical production, the margin for error is zero. A moment of turbulence, a little too much pressure, or an unexpected jolt: a delicate vial might crack, a syringe could tip, or a sensitive biologic like albumin might foam and lose its potency. In a space where precision is everything, the way products are moved matters just as much as how they're made.
FlexLink's automation transforms pharmaceutical distribution centers
The scene repeats itself daily across pharmaceutical distribution centers worldwide: demand needs surge regularly, challenging staffing levels and automation flexibility.
