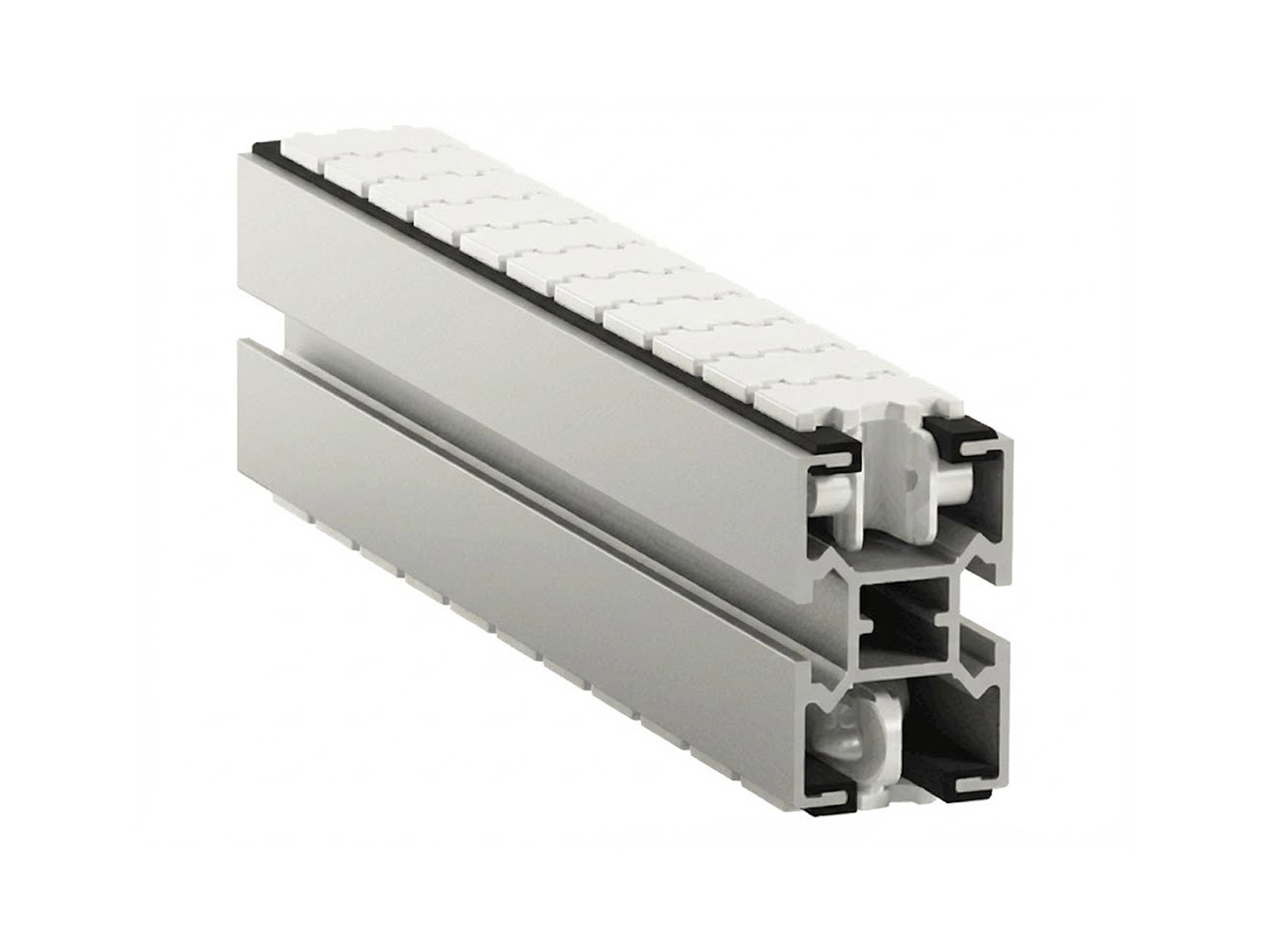

X45H is a high capacity conveyor platform designed for small products that need longer transport distances, higher speeds, and stronger mechanical performance than X45C. It uses the same 45 mm beam width and 43 mm chain width, ensuring full mechanical compatibility with X45C.
The system features a strong chain with a 900 N tension limit and supports conveyor lengths up to 25 m, enabling robust, continuous product flow. X45H accommodates single item weights up to 8 kg and total loads up to 125 kg, positioning it as the heavy duty option in the 45 mm family. Its rigid beams and optimized slide rails support smooth, low noise operation even at high speeds up to 60 m/min.
A wide range of bends and heavy duty drive units allow complex, long distance routing with minimal maintenance. Overall, X45H is the ideal “highway” conveyor in systems requiring durable performance, long runs, and high throughput.
The system features a strong chain with a 900 N tension limit and supports conveyor lengths up to 25 m, enabling robust, continuous product flow. X45H accommodates single item weights up to 8 kg and total loads up to 125 kg, positioning it as the heavy duty option in the 45 mm family. Its rigid beams and optimized slide rails support smooth, low noise operation even at high speeds up to 60 m/min.
A wide range of bends and heavy duty drive units allow complex, long distance routing with minimal maintenance. Overall, X45H is the ideal “highway” conveyor in systems requiring durable performance, long runs, and high throughput.
