Conveying solutions with a vision
Space-saving efficiency for the optical industry
Configure your solutionDifferent systems for Optical Industries
Either choose to configure your system from the start above, or, if you already know which system you want, you can browse among the options below.
XH
Aluminum
105 mm
XH
Aluminum
105 mm
XH Plastic Chain Conveyors
FlexLink XH conveyor system is suitable for larger items, with a conveyor track of 105mm.
General technical features
- Chain width [mm]:
- 103
- Food approval:
- FDA
- Drive unit capacity [N]:
- 1250
- Chain tension limit [N]:
- 1250
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 300
Production environment
- Operating temperature [°C]:
- -20–60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 25–300
CSE
Compact
Spiral Elevator
CSE
Compact
Spiral Elevator
X85 Compact Spiral Conveyor
FlexLink's compact spiral conveyors offer a high throughput solution for up or down elevations with the lowest spiral conveyor footprint on the market.
General technical features
- Chain width [mm]:
- 85
- Material:
- Aluminium
- Diameter C-C [mm]:
- 500
- Max height [mm]:
- 2900
- Incline [°]:
- 11
- Direction:
- Up, Down
- Infeed level:
- 900
- Chain type:
- Friction, Flat friction, Cleated, Plain
- Drive unit/spiral:
- 2
Production environment
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 10–50
Product range
- Max load [kg/m]:
- 2
- Max product height [mm]:
- 175
- Max product size (LxW) [mm]:
- 200x175
SE
Spiral Elevator
SE
Spiral Elevator
Ambaflex Spiral Conveyor
FlexLink's classical spiral conveyors offer a high throughput solution for up or down elevations.
General technical features
- Chain width [mm]:
- 100
- Material:
- Steel
- Diameter C-C [mm]:
- 1000
- Max height [mm]:
- 5000
- Incline [°]:
- 9
- Direction:
- Up, Down
- Infeed level:
- 600, 700, 800, 900, 1000
- Chain type:
- Flat friction
- Drive unit/spiral:
- 1
Production environment
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 5–60
Product range
- Max load [kg/m]:
- 10
- Max product height [mm]:
- 300
RC12
Palletizer
Collaborative
RC12
Palletizer
Collaborative
RC12 Collaborative Palletizer
New collaborative standardized palletizer with unmatched safety and customizable application layer.
General technical features
- Robot Arm:
- Omron TM12-S
- Power supply:
- 110/230 VAC, Single phase
- Air:
- Integrated vacuum generation
- Footprint [m²]:
- 13.0
Production environment
- Operating temperature [°C]:
- 10–40
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 8, Double pick: 14
- Max pallet height [mm]:
- 2040
Product range
- Max box weight [kg]:
- 10
- Box size [mm]:
- from 150x150x150 to 600x400x500
RI20
Palletizer
Industrial
RI20
Palletizer
Industrial
RI20 Industrial Palletizer
Modern, safe and easy to use palletizing solution. Designed to work continuously with consistent quality and precision.
General technical features
- Robot Arm:
- Kuka KR20, M-20iD/35
- Power supply:
- 3x400 VAC 50Hz 50A
- Air:
- Compressed air
- Footprint [m²]:
- 18.0
Production environment
- Operating temperature [°C]:
- 5–40
- Environment:
- Dry
- Cleaning method:
- Dry
- Humidity [%]:
- 10–70
Performance
- Palletizing capacity [box/min]:
- Single pick: 12, Double pick: 20
- Max pallet height [mm]:
- 2200
Product range
- Max box weight [kg]:
- 29
- Box size [mm]:
- from 140x200x110 to 480x600x480
XC
Structural system
44 mm base
XC
Structural system
44 mm base
XC - Enclosure and guards
Enclosures, machine frames and protections. 44mm base.
TC
Structural system
40 mm base
TC
Structural system
40 mm base
TC - Enclosure and guards
Enclosures, machine frames and protections. 40mm base.
3 of our most popular systems for Optical Industry
XH Plastic Chain Conveyors
FlexLink XH conveyor system is suitable for larger items, with a conveyor track of 105mm.
Technology: Aluminum Conveyor Systems

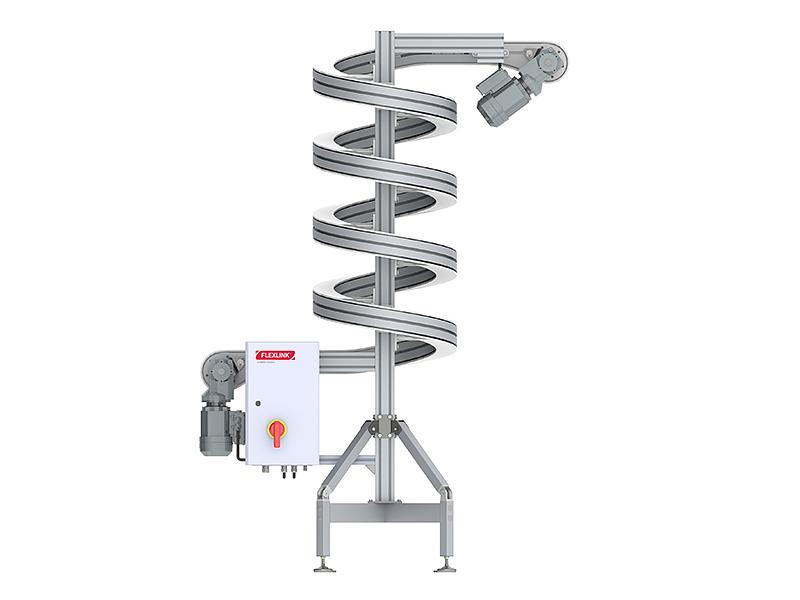

Read moreX85 Compact Spiral Elevator
FlexLink's compact spiral elevators offer a high throughput solution for up or down elevations with the lowest spiral elevator footprint on the market.
Technology: Elevating Solutions

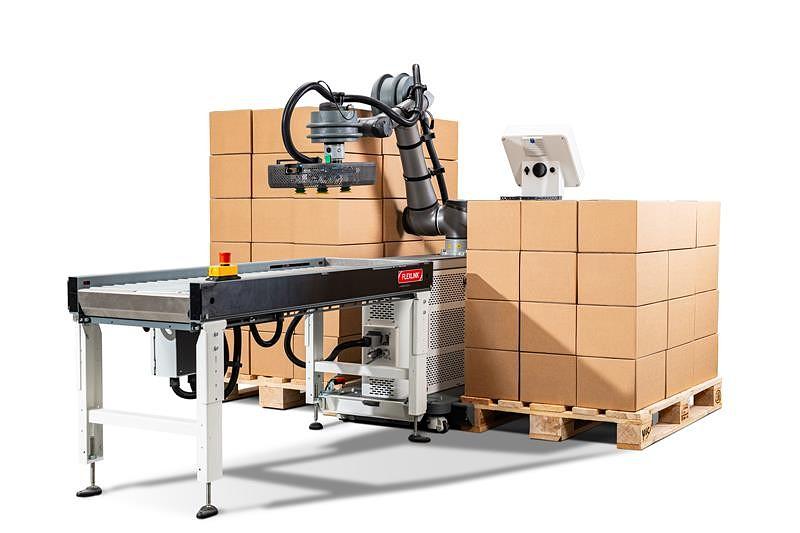

Read moreRC12 Collaborative Palletizer
New collaborative standardized palletizer with unmatched safety and customizable application layer.
Technology: Palletizing
