The multi-flexing XS plastic chain conveyor system with an aluminum beam permits horizontal and vertical distribution of products. The conveying system's tight vertical bends save floor space by enabling multilevel transportation and making access easy for operators. The standard conveyor chain width is 45 mm, and the conveyed products vary from a few grams up to 2 kg, in many shapes. The collection of standard components guarantees the design of a customized conveyor solution with a fast delivery time. The conveyor can be configured with a suitable chain according to the production requirements, e.g., temperature, strength, etc.

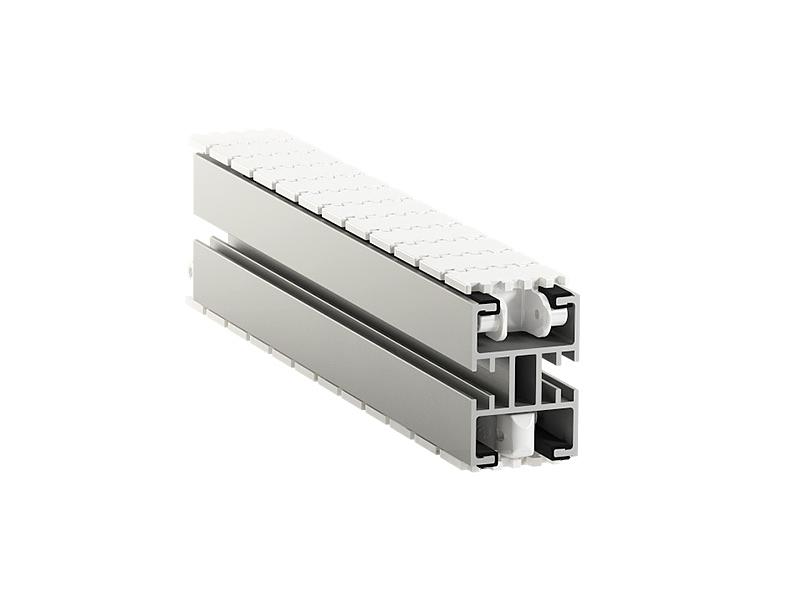

XS Plastic Chain Conveyors
FlexLink's XS conveyor system is very compact and neat designed. Its chain permits transport of very small items. The conveyor is 45mm wide.
- Technology:
- Aluminum Conveyor Systems
- Industries:
- Consumer goods, Food, Pharma
Visit FlexLink components store to order equipment directly
Need a technical expert? Find your FlexLink office
Description
General technical features
- Chain width [mm]:
- 44
- Food approval:
- FDA/EU
- Drive unit capacity [N]:
- 500
- Chain tension limit [N]:
- 500
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 150
Production environment
- Operating temperature [°C]:
- -20 to 60
- Environment:
- Dry
- Cleaning method:
- Dry
Performance
- Max speed [m/min]:
- 60
Product range
- Recommended item width [mm]:
- 10-80
Technical documents:
