The X70X plastic chain conveyor system with stainless steel beam is clean, robust, and modular and includes a complete range of guide rails and supports. The conveyors are adapted to cleanliness requirements within the food processing, pharmaceutical, and hygiene industries. The standard conveyor chain width is 70 mm, and the conveyed products vary from a few grams up to 10 kg. The design follows a proactive approach to increasing cleanliness, minimizing dirt pockets, and maximizing rounded surfaces for better drainage. Standardization also simplifies assembly and installation, cutting start-up time and allowing quick and easy line modifications.

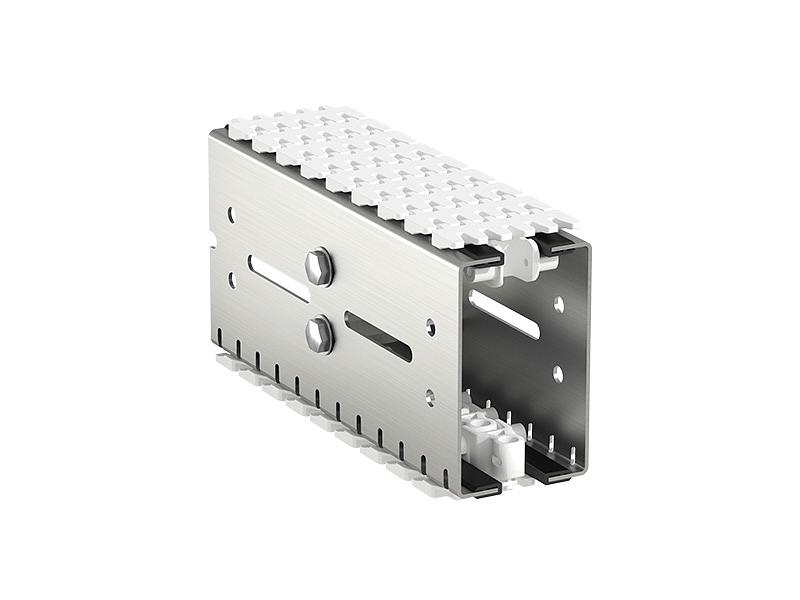

X70X Plastic Chain Conveyors
FlexLink's X70X conveyor system is designed to provide structure rigidness, robustness, and easier cleaning.
- Technology:
- Stainless Steel Conveyor Systems
- Industries:
- Pharma, Food
Visit FlexLink components store to order equipment directly
Need a technical expert? Find your FlexLink office
Description
General technical features
- Chain width [mm]:
- 68
- Food approval:
- FDA/EU
- Drive unit capacity [N]:
- 800
- Chain tension limit [N]:
- 800
- Max conveyor length [m]:
- 30
- Max weight on conveyor [kg]:
- 200
Production environment
- Operating temperature [°C]:
- -20 to 60
- Environment:
- Dry,Wet
- Cleaning method:
- Dry,Wet
Performance
- Max speed [m/min]:
- 90
Product range
- Recommended item width [mm]:
- 15-140
